Self-hosted DuckLake

Set up DuckDB in Ascend with your own DuckLake infrastructure. You manage the PostgreSQL instance and object storage while Ascend coordinates the processing.

Prerequisites

• An Ascend Project
• An Ascend Workspace
• A PostgreSQL Connection to a PostgreSQL instance
  • Follow these guides to create a PostgreSQL instance on Azure, GCP, or AWS
• A Connection to your preferred cloud object storage platform

Overview

In Ascend, DuckLake runs ephemeral DuckDB processing directly on Flow runners with all data and metadata stored remotely, giving you the benefits of in-process compute with reliable, centralized data and metadata management.

1. PostgreSQL Connection → Stores metadata and schema information
2. Object store Connection → Stores actual data files (Parquet format)
3. DuckDB Connection with DuckLake catalog → Coordinates processing between metadata and data

This guide assumes your PostgreSQL and object store Connections are already configured. Name them consistently:

• PostgreSQL Connection: data_plane_ducklake_metadata.yaml (or similar)
• Object store Connection: data_plane_ducklake_data_gcs.yaml (or similar; adjust suffix for your provider)

Configure Project parameters

DuckDB and DuckLake require specific parameters to coordinate between your data and metadata Connections. Add these parameters to your Ascend Project file:

ascend_project.yaml

...
parameters:
  data_planes:
    ducklake:
      data_connection_name: data_plane_ducklake_data_gcs
      metadata_connection_name: data_plane_ducklake_metadata

Now that your Project parameters are configured, the next step is to create the DuckDB Connection that integrates a DuckLake catalog.

Create a DuckDB Connection

From your Workspace Super Graph view, follow these steps:

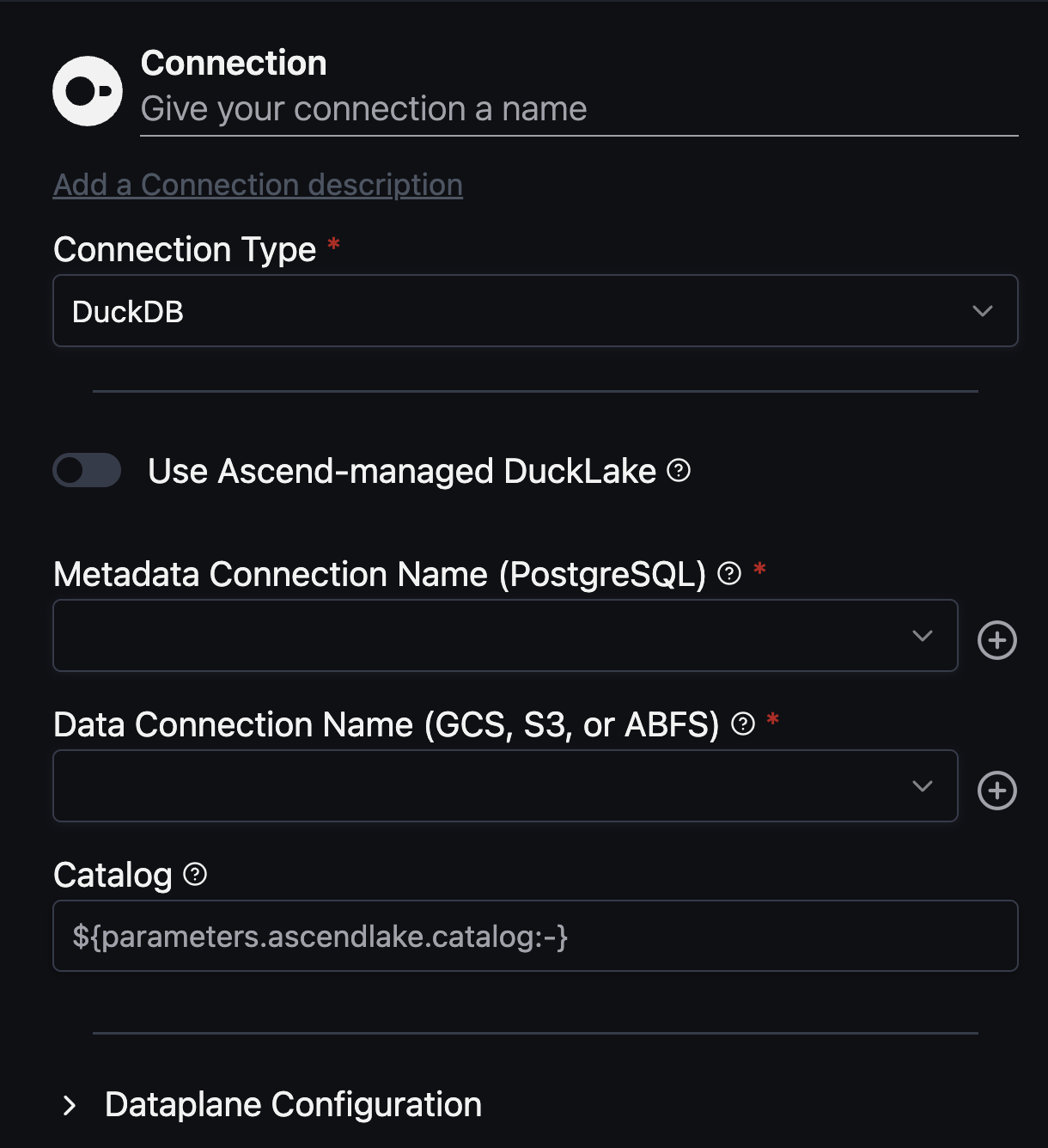

Form

1. Create a Connection by either:
   • Clicking the + button next to Connections in the left Build panel

   • Right-clicking in the Super Graph and selecting Create Connection

2. Enter a descriptive name like data_plane_duckdb
3. Select DuckDB from the available options
4. Fill in the required fields (and any optional fields as needed)
5. Click Save at the bottom to create your Connection

Files panel

1. Open the Files panel in the top left
2. Right-click the connections directory and select New File

3. Give your file a descriptive name like data_plane_duckdb.yaml

For complete configuration options, see our Connection reference guide.

Your DuckDB Connection file should look like this:

connections/data_plane_ducklake.yaml

connection:
  duckdb:
    ducklake:
      data_connection_name: ${parameters.data_planes.ducklake.data_connection_name}
      metadata_connection_name: ${parameters.data_planes.ducklake.metadata_connection_name}

This Connection configuration references the parameters you defined earlier and automatically coordinates between your PostgreSQL metadata store and object storage.

Verify your setup

Test all three Connections to verify they're configured correctly:

1. PostgreSQL Connection (data_plane_ducklake_metadata.yaml)
2. Object store Connection (e.g. data_plane_ducklake_data_gcs.yaml)
3. DuckLake catalog Connection (data_plane_ducklake.yaml)

Optimize performance with concurrency

For optimal performance with DuckLake, configure concurrency settings to balance throughput with reliability.

🎉 Congratulations, you just set up a DuckDB Connection with a DuckLake catalog in Ascend!

Now that your DuckDB Connection is set up:

• 💡 Read data - Connect to your data sources
• 🔄 Transform data - Process and transform your data
• 📤 Write data - Output your transformed data
