Set up a PostgreSQL Instance Store on Azure

This guide explains how to configure a PostgreSQL database on Azure for use with an Ascend Instance.

Prerequisites​

Create a PostgreSQL instance on Azure​

  1. Navigate to the Azure portal

  2. Search for and select Azure Database for PostgreSQL flexible servers

  3. Click Create to create a new instance

  4. Configure basic settings:

    • Select your Subscription
    • Choose a Resource Group
    • Enter a Server Name (must be globally unique)
    • Select your Region new db

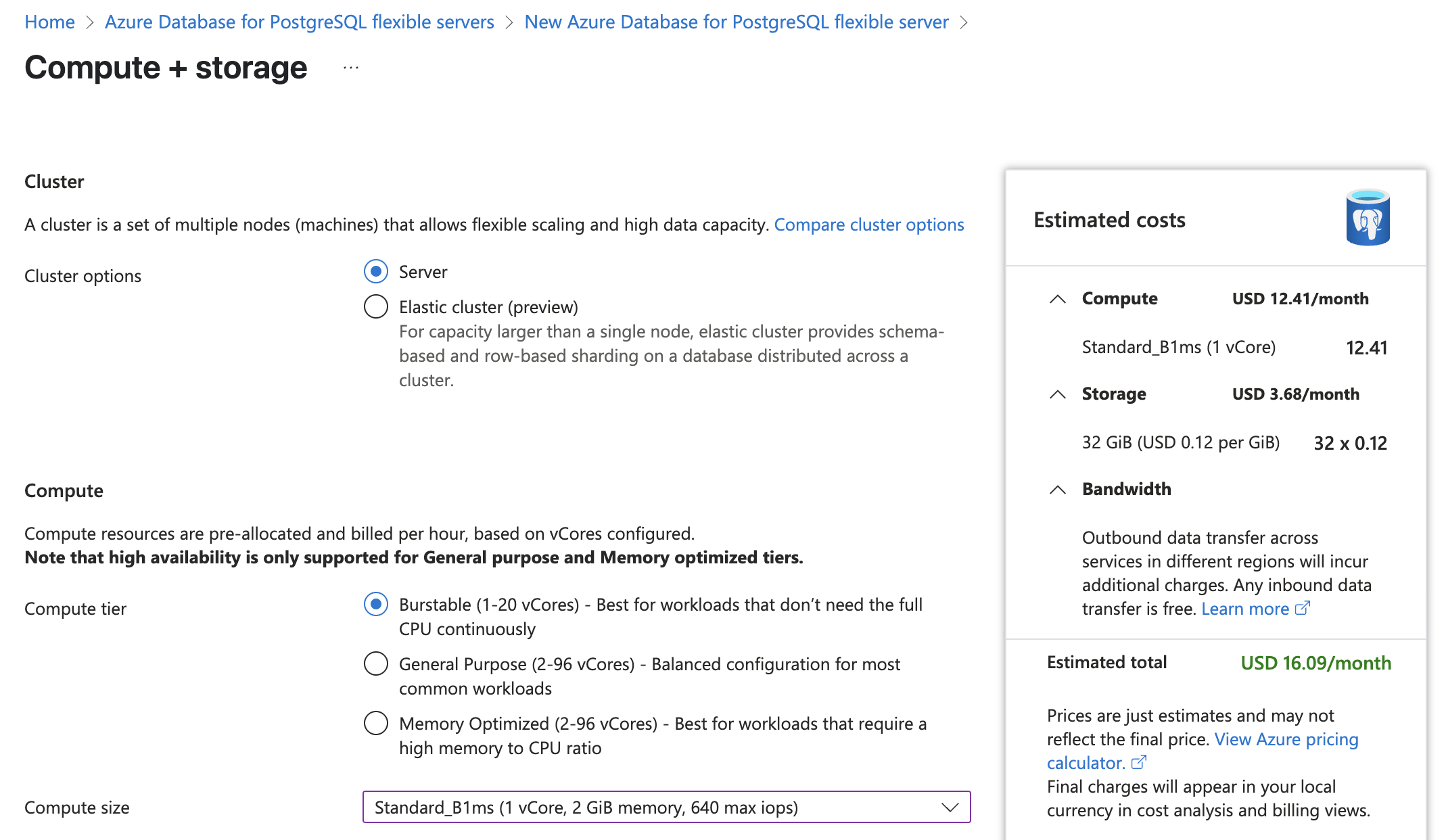

  5. Click Configure Server to adjust compute size

note

This server receives minimal queries, so start with the smallest compute size, 32 GiB.

note

With self-hosted instances, you are responsible for the underlying infrastructure. Ensure you understand how to recover your database in case of data loss.

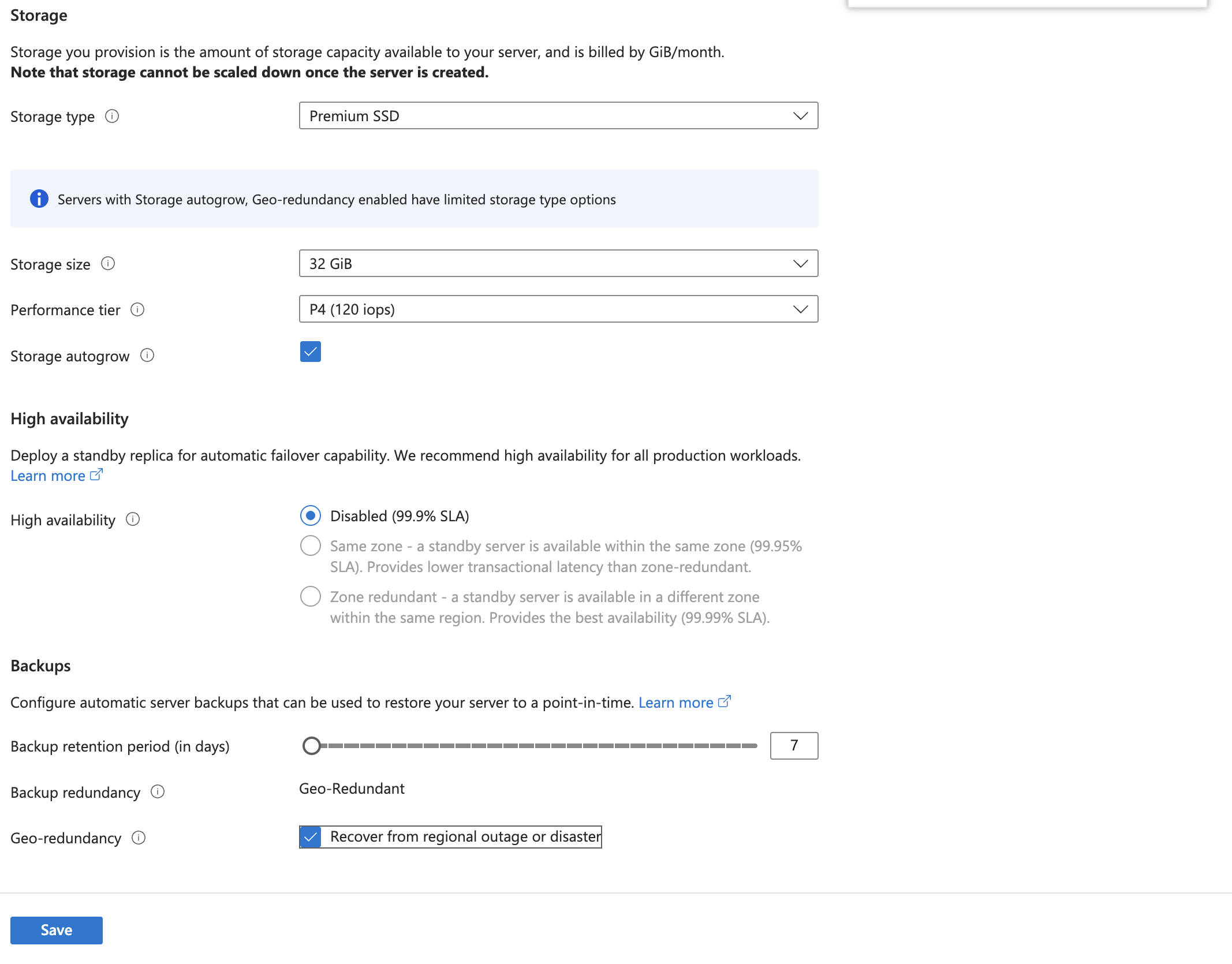

compute storage

  1. After saving, return to the creation screen

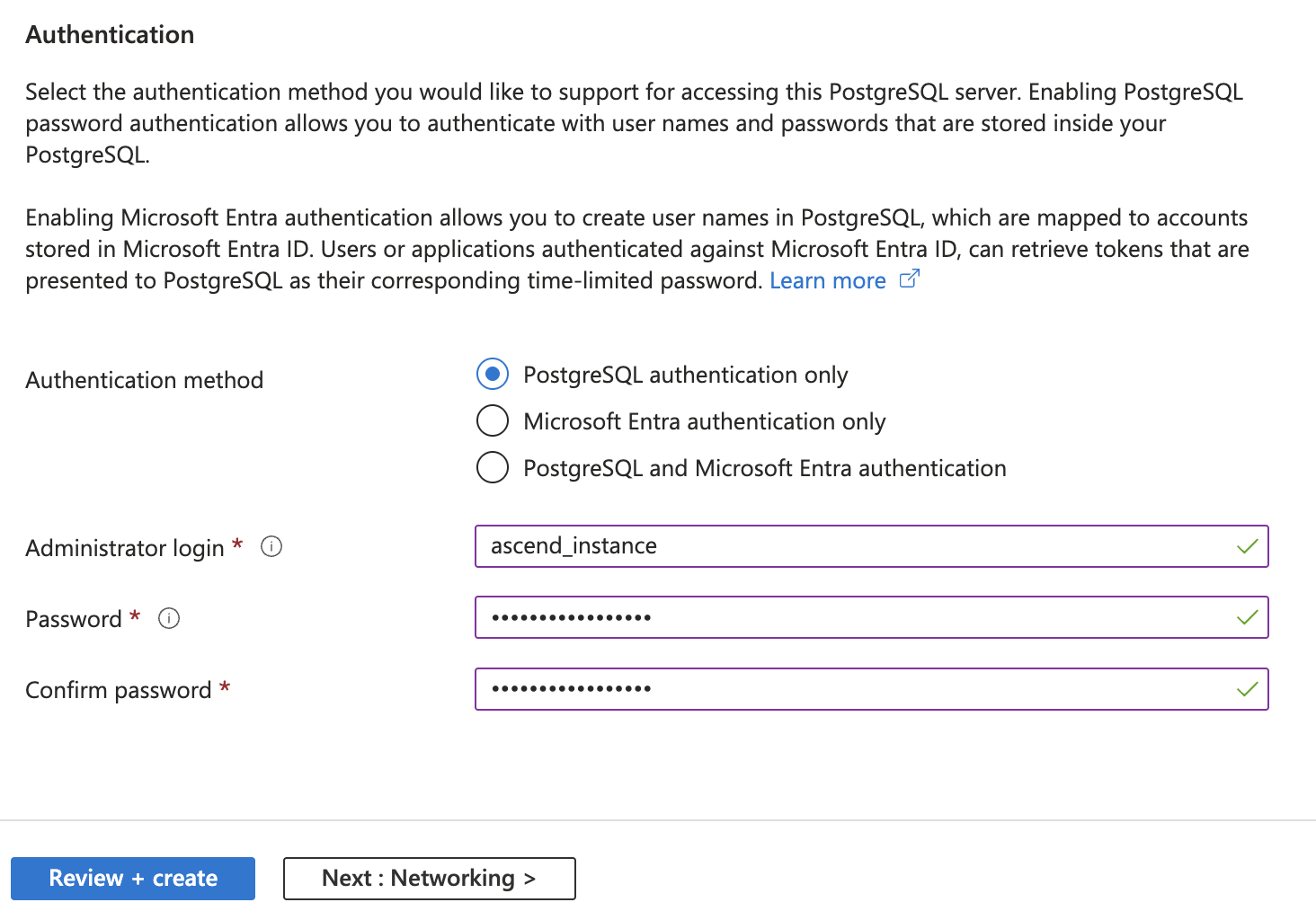

  2. Update authentication settings:

    • Set an admin login and password
    • Record your password for later use in your instance vault auth

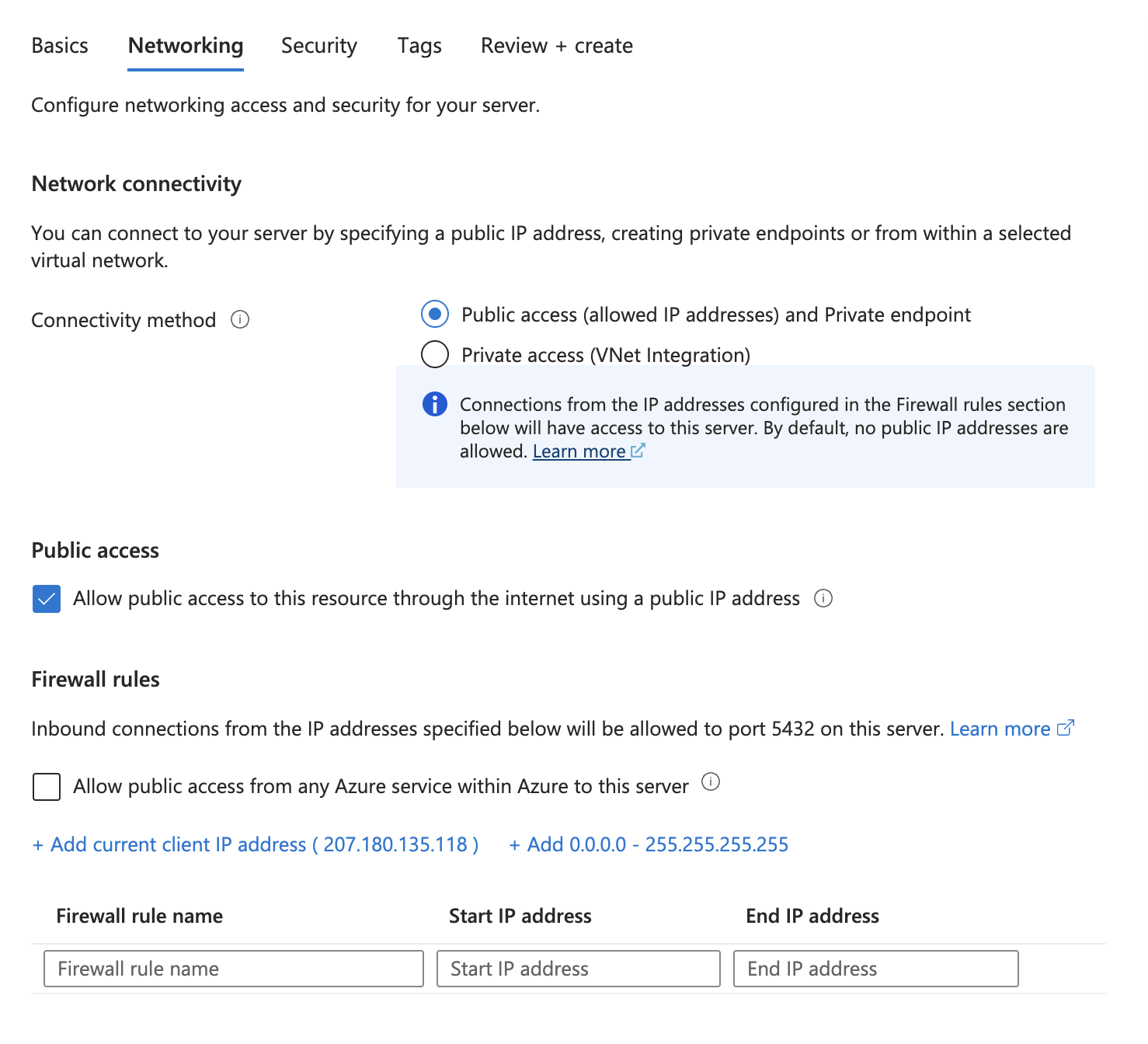

  3. Click Next to configure networking

  4. Set networking configuration to allow your self-hosted instance to access this database:

    • Option 1: Enable public access and add firewall rules for your AKS egress IPs
    • Option 2: Set up private access via VNet Integration networking

  5. Click Next to Security and leave default settings

  6. Click Next to Tags and add any required tags

  7. Review settings and click Create

note

For more details, reference the Azure documentation.

  1. Note your Endpoint after creation: [server_name].postgres.database.azure.com

Configure your Ascend Instance Store​

  1. Access your Ascend Instance settings:

    • Navigate to your Instance URL
    • Go to Settings > Instance

  2. Add your database password to the Instance Vault:

    • Scroll to Instance Vault section
    • Select Manage Secrets
    • Click Add Secret
    • For the Secret Details:
      • Use a Name like ascend-instance-store-postgres-admin-password
      • Input the password in Value

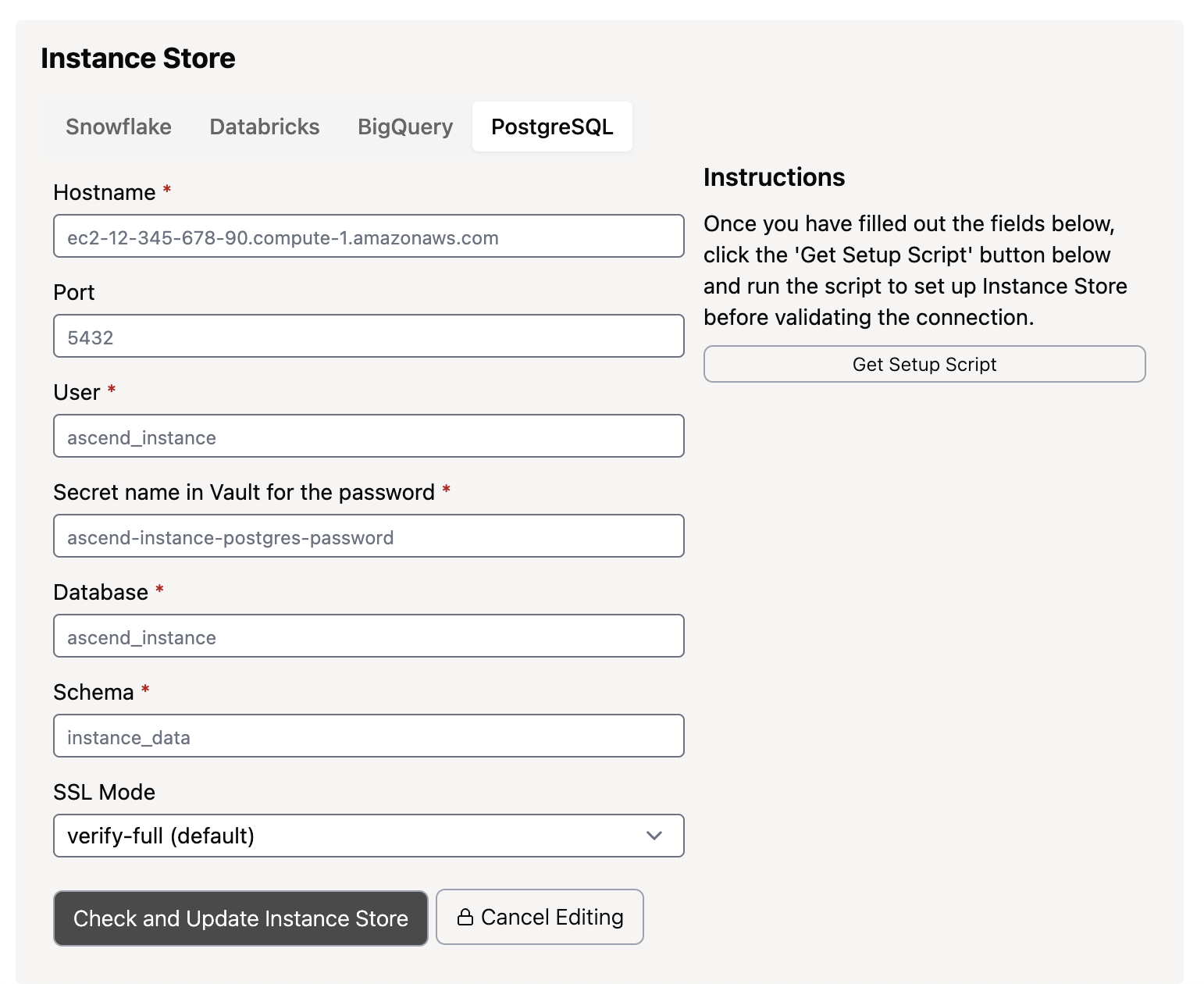

  3. Configure the Instance Store:

    • Return to Settings > Instance
    • Click Edit Instance Store
    • Select PostgreSQL
    • Enter the following details:
      • Hostname
      • User
      • Secret name from vault (e.g., ascend-instance-store-postgres-admin-password)
      • Database name (recommended: ascend_instance)
      • Schema (recommended: instance_data) instance

  4. Click "Check and Update Instance Store"

Build and run your first Flow​

  1. Navigate to the Ascend home by clicking the Ascend cloud icon in the top left.

  2. From the Ascend home, navigate to the workspace you created above and open the Files view toward the top left of the screen. Edit the profiles/dev.yaml file and update the following parameters under profile.parameters:

    • bigquery_project_id: <your-bigquery-project-id>
    • bigquery_dataset: QUICKSTART_DEV (or your preferred dataset name)
    • bigquery_location: US (or your preferred location)

  3. Use Cmd+S or Ctrl+S to save your changes.

  4. Finally, go into the quickstart Flow and hit Run Flow!

🎉 Congratulations! You've successfully set up your first Ascend Flow!

Next steps​

Now that you have your first Flow running, consider:

  • Setting up Deployments to implement software engineering best practices
