Create a Simple SQL Transform
In this guide, we'll build a Simple SQL Transform that efficiently processes entire datasets using standard SQL.
Prerequisites​
- Ascend Flow
Create a Transform​
You can create a Transform in two ways: through the form UI or directly in the Files panel.
- Using the Component Form
- Using the Files Panel
- Double-click the Flow where you want to add your Transform

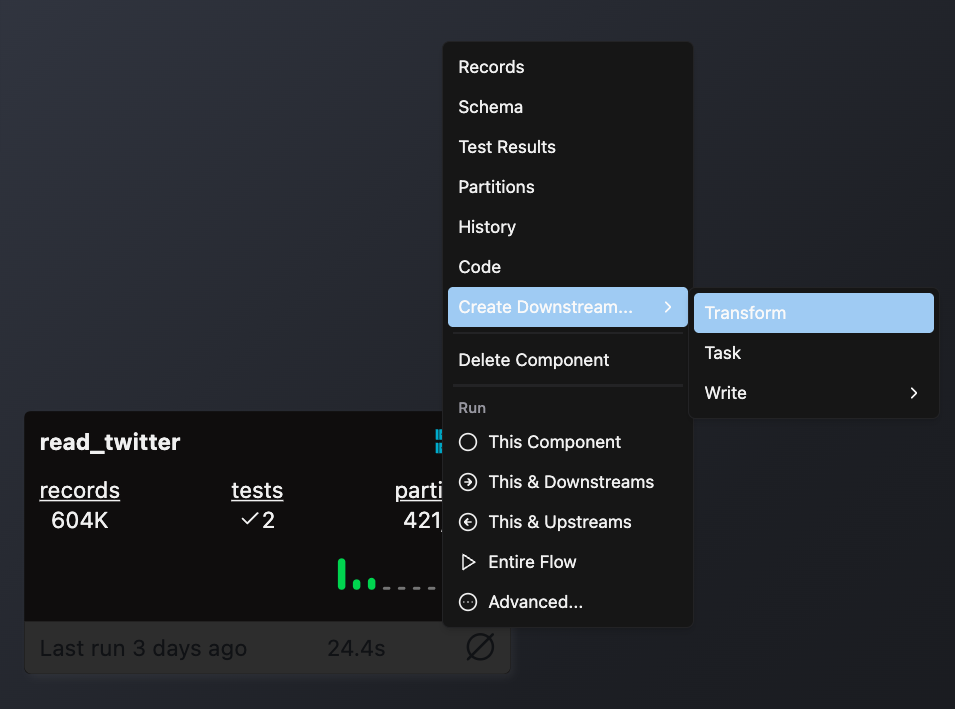

- Right-click on an existing component (typically a Read component or another Transform) that will provide input data
- Select Create Downstream → Transform

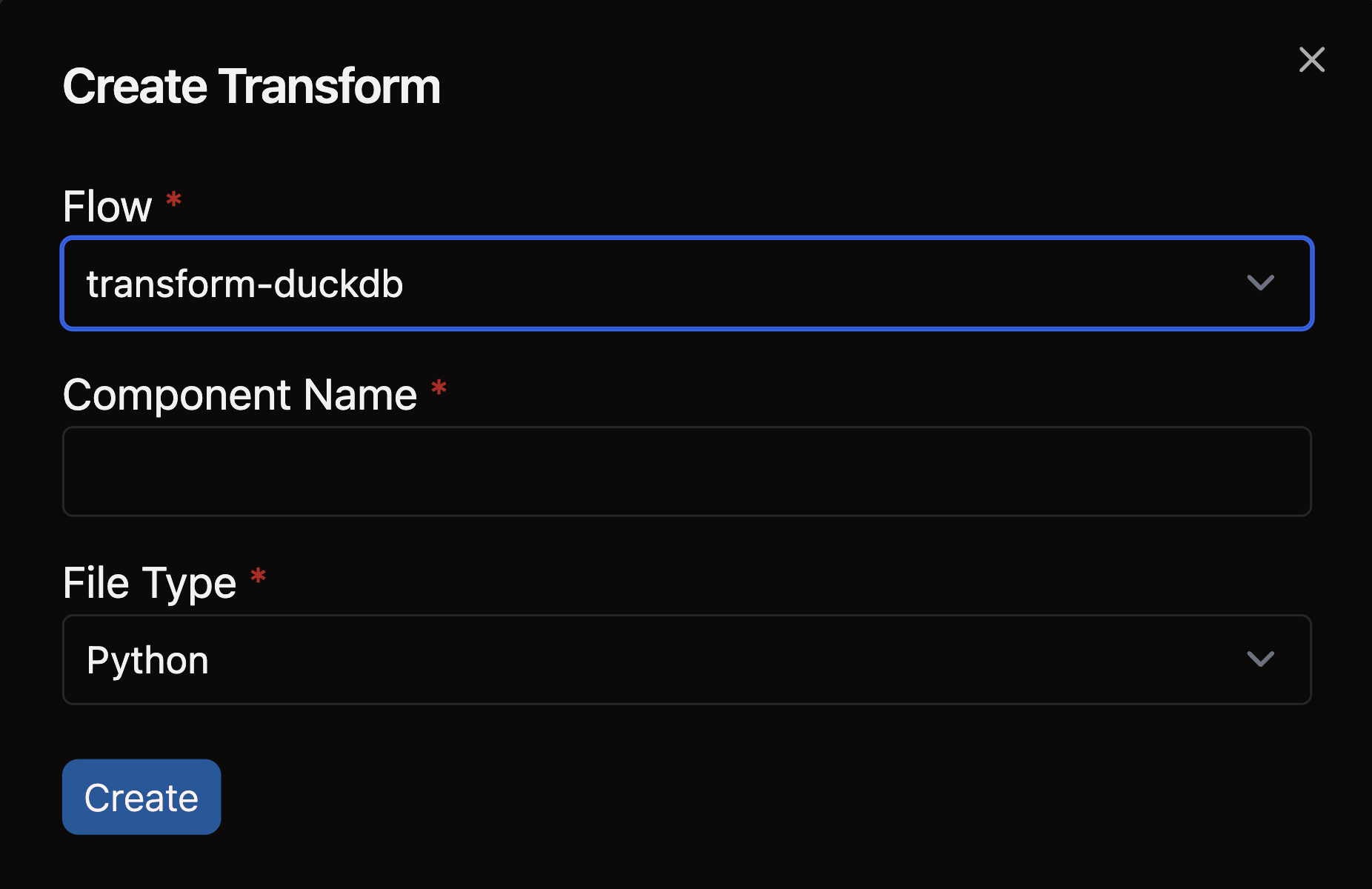

- Complete the form with these details:
- Select your Flow
- Enter a descriptive name for your Transform (e.g.,
sales_aggregation
) - Choose the appropriate file type for your Transform logic
- Open the files panel in the top left corner
- Navigate to and select your desired Flow
- Right-click on the components directory and choose New file
- Name your file with a descriptive name that reflects its purpose (e.g.,
sales_aggregation
) - Choose the appropriate file extension based on your Transform type:
.py
for Python Transforms.sql
for SQL Transforms
Create your Simple SQL Transform​
Simple SQL Transforms let you apply familiar SQL operations to your data while leveraging Ascend's powerful orchestration capabilities. These transforms execute standard SQL queries against referenced input components.
Basic structure​
Structure your SQL code using the ref
function to reference upstream data sources, which can be either Read Components or other Transform Components.
Minimal example​
SELECT * FROM {{ ref("<YOUR-UPSTREAM-COMPONENT-NAME>") }}
Practical example​
SELECT
cabs.*,
pickup_zones.Borough AS pickup_borough,
pickup_zones.Zone AS pickup_zone,
pickup_zones.service_zone AS pickup_service_zone,
dropoff_zones.Borough AS dropoff_borough,
dropoff_zones.Zone AS dropoff_zone,
dropoff_zones.service_zone AS dropoff_service_zone
FROM {{ ref('all_cabs') }} AS cabs
LEFT OUTER JOIN {{ ref('taxi_zone_lookup') }} AS pickup_zones
ON cabs.pickup_location_id = pickup_zones.LocationID
LEFT OUTER JOIN {{ ref('taxi_zone_lookup') }} AS dropoff_zones
ON cabs.dropoff_location_id = dropoff_zones.LocationID
Advanced Transform features​
Ascend offers powerful features that can significantly improve your data pipeline's performance, reliability, and maintainability.
Data partitioning​
By default, transforms process the entire dataset as a single unit. However, you can dramatically improve performance by partitioning your data into smaller chunks that process in parallel. Enable this by adding partition_by
and granularity
parameters to the ref
function.
For example, to process taxi trip data by day:
SELECT
cabs.*,
pickup_zones.Borough AS pickup_borough,
pickup_zones.Zone AS pickup_zone,
pickup_zones.service_zone AS pickup_service_zone,
dropoff_zones.Borough AS dropoff_borough,
dropoff_zones.Zone AS dropoff_zone,
dropoff_zones.service_zone AS dropoff_service_zone
/* Partition daily by pickup-datetime column */
FROM {{ ref('all_cabs', partition_by='pickup_datetime', granularity='day') }} AS cabs
LEFT OUTER JOIN {{ ref('taxi_zone_lookup') }} AS pickup_zones
ON cabs.pickup_location_id = pickup_zones.LocationID
LEFT OUTER JOIN {{ ref('taxi_zone_lookup') }} AS dropoff_zones
ON cabs.dropoff_location_id = dropoff_zones.LocationID
When executed, Ascend partitions the input data by day based on the pickup_datetime
column and processes each partition concurrently, significantly accelerating processing for large datasets.
For more on partitioning strategies, see our guides on advanced partitioning and incremental transforms.
Schema evolution handling​
You can define how your transform adapts to schema changes by adding the on_schema_change
option to the config block. This is particularly valuable in environments where source data schemas evolve frequently.
This example shows how to automatically incorporate new columns:
/* Add on_schema_change option*/
{{
config(
on_schema_change='append_new_columns'
)
}}
SELECT
cabs.*,
pickup_zones.Borough AS pickup_borough,
pickup_zones.Zone AS pickup_zone,
pickup_zones.service_zone AS pickup_service_zone,
dropoff_zones.Borough AS dropoff_borough,
dropoff_zones.Zone AS dropoff_zone,
dropoff_zones.service_zone AS dropoff_service_zone
FROM {{ ref('all_cabs', partition_by='pickup_datetime', granularity='day') }} AS cabs
LEFT OUTER JOIN {{ ref('taxi_zone_lookup') }} AS pickup_zones
ON cabs.pickup_location_id = pickup_zones.LocationID
LEFT OUTER JOIN {{ ref('taxi_zone_lookup') }} AS dropoff_zones
ON cabs.dropoff_location_id = dropoff_zones.LocationID
Data validation testing​
Integrate automated data quality checks using the with_test
function to validate transform outputs. These tests execute whenever the transform runs, ensuring data meets your quality requirements.
Here we validate that:
- The
vendor_id
column contains no null values - The output contains exactly 2,912,193 rows
{{
config(
on_schema_change='append_new_columns'
)
}}
SELECT
cabs.*,
pickup_zones.Borough AS pickup_borough,
pickup_zones.Zone AS pickup_zone,
pickup_zones.service_zone AS pickup_service_zone,
dropoff_zones.Borough AS dropoff_borough,
dropoff_zones.Zone AS dropoff_zone,
dropoff_zones.service_zone AS dropoff_service_zone
FROM {{ ref('all_cabs', partition_by='pickup_datetime', granularity='day') }} AS cabs
LEFT OUTER JOIN {{ ref('taxi_zone_lookup') }} AS pickup_zones
ON cabs.pickup_location_id = pickup_zones.LocationID
LEFT OUTER JOIN {{ ref('taxi_zone_lookup') }} AS dropoff_zones
ON cabs.dropoff_location_id = dropoff_zones.LocationID
/* Add data quality checks */
{{ with_test("not_null", column="vendor_id") }}
{{ with_test("count_equal", count=2912193) }}
For a complete list of available tests, see our data quality testing reference.
🎉 Congratulations! You just created your first Simple SQL Transform in Ascend!
