Create an Incremental Oracle Read Component

This guide walks you through building an Incremental Oracle Read Component that ingests only new or updated records.

Prerequisites

• Ascend Flow
• Oracle Connection

Create a new Component

Begin from your workspace Super Graph view. Follow these steps to create your component:

Using the Component Form

1. Double-click the Flow where you want to create your component

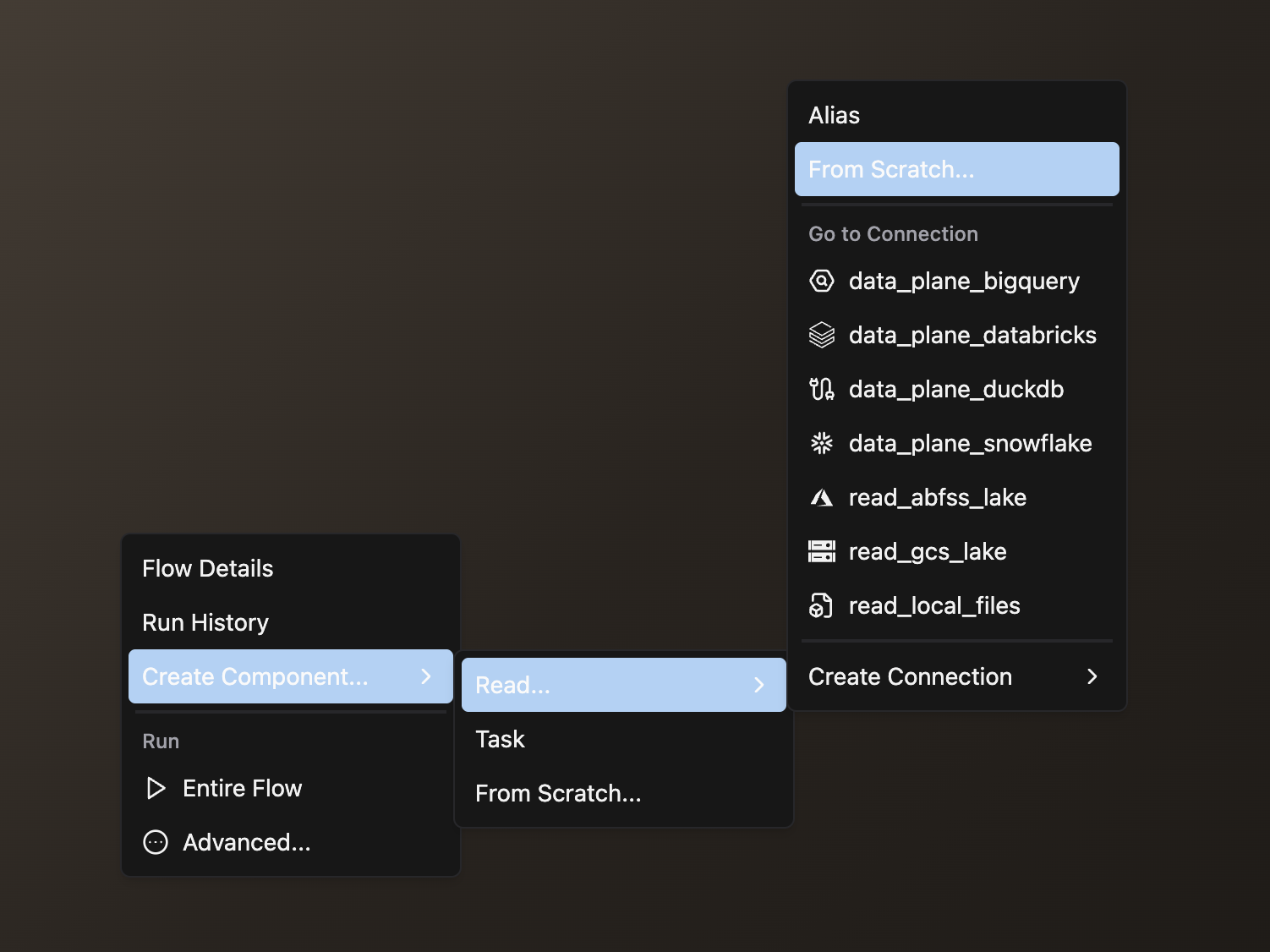

2. Right-click anywhere in the Flow Graph
3. Hover over Create Component, then over Read in the expanded menu, and click From Scratch
4. Complete the form with these details:
   • Select your Flow
   • Enter a descriptive Component Name like read_sales
   • Select YAML as your file type

Using the Files Panel

1. Open the files panel in the top left corner
2. Navigate to and select your desired Flow
3. Right-click on the components directory and choose New file
4. Name your file with a descriptive name like read_sales.yaml and press enter

Create your Incremental Oracle Component

Structure your Oracle Incremental Read Component following this pattern:

1. Reference your Oracle connection: Specify which connection to read from.
2. Add the oracle key – specify the table you want to read from. In this example, we use the my_table table in the my_schema schema.
3. Add the replication key – specify the CDC replication strategy:

   strategy:
     replication: cdc  # Use Change Data Capture to stream changes from Oracle.
   tip

   CDC-based replication streams inserts, updates, and deletes in near real-time. Ensure CDC is enabled on your source table.

4. Add the incremental key – specify the append materialization strategy:

   strategy:
     incremental: append  # Appends new and changed records as they arrive.

read_oracle_incremental.yaml

component:
  read:
    connection: my-oracle-connection
    oracle:
      table:
        name: my_table
        schema: my_schema
    strategy:
      replication: cdc  # Specifies the Change Data Capture (CDC) replication strategy.
      incremental: append  # Specifies that changes from CDC should be appended incrementally.

🎉 Congratulations! You just created an Incremental Oracle Read Component in Ascend.
